stress concentration increases. However, upon full separation of
the mesh, this tip stress is relieved as propagation is halted. The
mesh is then free to shrink further subject to the basal friction
condition.
8 REFERENCES
Albrecht B. A. and Benson C. H. 2001 Effect of desiccation on
compacted natural clays.
J. Geotechnical and Geoenvironmental
Eng.
127 (1), 67-75
Amarasiri A. L., Kodikara J. K. and Costa S. 2011 Numerical modelling
of desiccation cracking.
Int. J. Numerical and Analytical Methods
in Geomech.
35, 82-96
Heibrock G, Zeh, R. M. and Witt K. J. 2003 Tensile strength of
compacted clays.
Preceedings of the international conference
'From Experimental Evidence towards Numerical Modelling of
Unsaturated Soils.
Weimar, Germany
Hughes P., Glendinning S. and Mendes J. 2007 Construction, testing
and instrumentation of an infrastructure testing embankment.
Proceedings of the Expert Symposium on Climate Change
Modelling, Impacts & Adaptations,
Singapore, 159-166

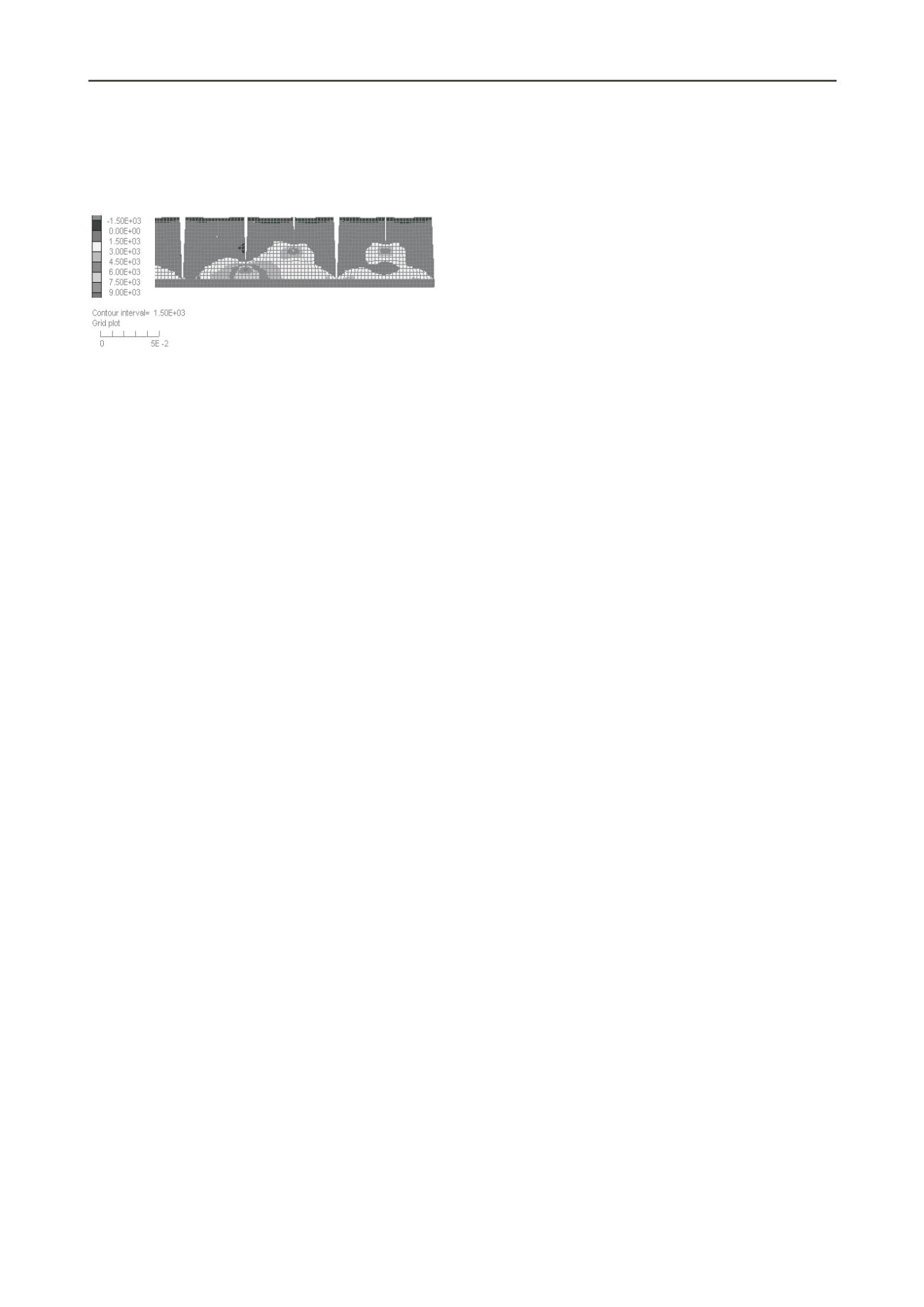

Figure 7 Distribution of total stress in the horizontal orientation.
The formation of shallow compressive stress concentrations
at the upper surface, such as that shown between existing cracks
in Figure 7 is considered to be the indicator of crack initiation
loci. The progressive development of such surface stress
concentrations away from previous crack formation is evidence
of sequential crack formation. The incorporation of tensile
strength variability across the many interfaces has allowed this
phenomenon not to dominate, therefore avoiding symmetry in
the resultant crack pattern. Simultaneous growth of primary
cracking at spacing relative to the progressive development of
surface stress is evident in Figure 6a, shown by the fully
penetrating cracks. The initiation of minor cracks at the surface
has led to stress relaxation and inhibited further pervasive
cracking.
