movement at the beginning. This is related to the assumption
that the heave of soil plug is caused by the penetration of
caisson walls. A fitting of the experimental curves using a value
of
m
=1.4 was also made. m=1.4 implies that the volume of the
soil going into the caisson cavity was 140% of the volume of
the soil replaced. This is possible as the additional 40% could
come from the expansion of the remolded soil or flow of soil
beneath the caisson. As discussed before, the soil plug was
broken at the end of the experiments. This aspect could not be
modeled by the analytical method.
Andersen, K.H., Jostad, H.P., 1999. Foundation Design of Skirted
Foundations and Anchors in Clay,
Offshore Technology
Conference,
Houston, Texas.
Andersen, K.H., Jostad, H.P., 2002. Shear Strength Along Outside Wall
of Suction Anchors in Clay after Installation,
Proceedings of The
Twelfth (2002) International Offshore and Polar Engineering
Conference
. Kitakyushu, Japan.
Andersen, K.H., Jostad, H.P., 2004. Shear Strength Along Inside of
Suction Anchor Skirt Wall in Clay,
Offshore Technology
Conference
, Houston, Texas.
Andresen, L., Jostad, H.P., Andersen, K.H., 2011. Finite Element
Analyses Applied in Design of Foundations and Anchors for
Offshore Structures.
International Journal of Geomechanics
11,
417-430.
Byrne, B.W., Houlsby, G.T., Martin, C.M., Fish, P., 2002. Suction
caisson foundation for offshore wind turbines.
Wind Engineering
26, 145-155.
Chen, W., Zhou, H., Randolph, M.F., 2009. Effect of Installation
Method on External Shaft Friction of Caissons in Soft Clay.
Journal of Geotechnical and Geoenvironmental Engineering
135,
605-615.
Chu, J., Yan, S.W., Li, W., 2012. Innovative methods for dike
construction – An overview.
Geotextiles and Geomembranes
30,
35-42.
Colliat, J.-L., Boisard, P., Gramet, J.-C., Sparrevik, P., 1996. Design
and installation of suction anchor piles at a soft clay site in the Gulf
of Guinea.
Paper OTC 8150, Offshore Technology Conference
,
Houston, Texas.

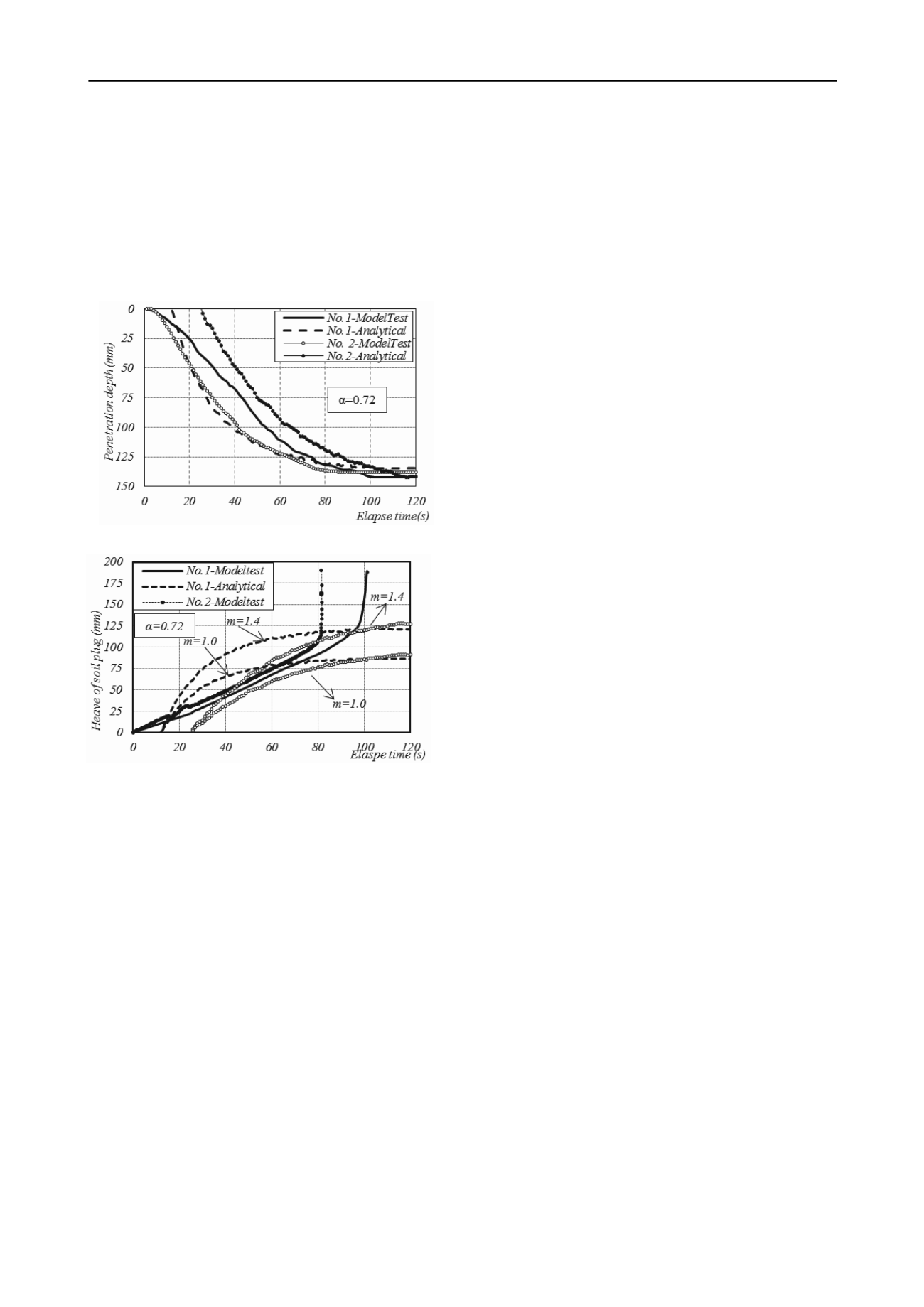

Figure 7 Predicted and measured penetration depth vs. time curves
