2.5
Drainage capacity
The Terzaghi criterion D
15f
/d
85b
≥ 4 still applies and Sherard
recommends D
15f
≥ 0.2 mm.
Casagrande, A. 1950. Notes on the Design of Earth Dams.
J. Boston
Soc. Civil Eng.
Oct. 1950, Vol. 37.
DeMello, F. 1975. Some lessons from unsuspected, real and factitious
problems in earth dam engineering in Brazil.
6
th
Regional Conf. on
Soil Mech. & Found. Eng.
, South Africa (11): 304ff.
2.6
Material durability
The durability of filter materials is typically investigated with
standard tests such as the Los Angeles abrasion test (ASTM
C535) or the wet and dry strength variation (typical
limit ≤35%).
However, for important dam structures a mineralogical and
chemical investigation of the dam material is recommended.
This can highlight if the material has inclusions of (i) swelling
clay
minerals
or
(ii)
minerals
which
dissolve
in
water,
e.g.
gypsum
or
carbonate
rocks. Latter materials
cannot
just
dissolve
but
also
re-cement
at
the
particle
contacts
and
create
true
cohesion. Materials with carbonate and sulphide content should
be used with care for dam filter materials.
Foster M. & Fell R. 1999.
A framework for estimating the probability of
failure of embankment dams by internal erosion and piping using
event tree methods.
UNICIV Report No. R-377, School of Civil and
Environmental Engineering, Univ. New South Wales, Sydney.
Kenney, T.C. & Lau, D. 1985. Internal stability of granular filters.
Can.
Geotech. J.
(22): 215-225.
Kenney, T.C. & Lau, D. 1986. Internal stability of granular filters.
Reply.
Can. Geotech. J.
(23): 420-423.
Messerklinger,
S.,
Brenner,
R.P.
&
Zegele,
Z.
2010.
Safety
and
Maintenance
Issues
for a Long Embankment on a Karstic Foundation
under Artesian Pressure.
2
nd
Int. Conf. on Dam Maintenance and
Rehabilitation
, Zaragoza: 325-334.
Messerklinger, S., Straubhaar, R., Brenner, R.P., Herzog, R., Laue, J. &
Springman, S.M. 2011a. Large-Scale Cyclic Triaxial Tests for the
Seismic Safety Assessment of a high Earth Core Rockfill Dam.
15
th
ECSMGE
, Athen, 1171-1176.

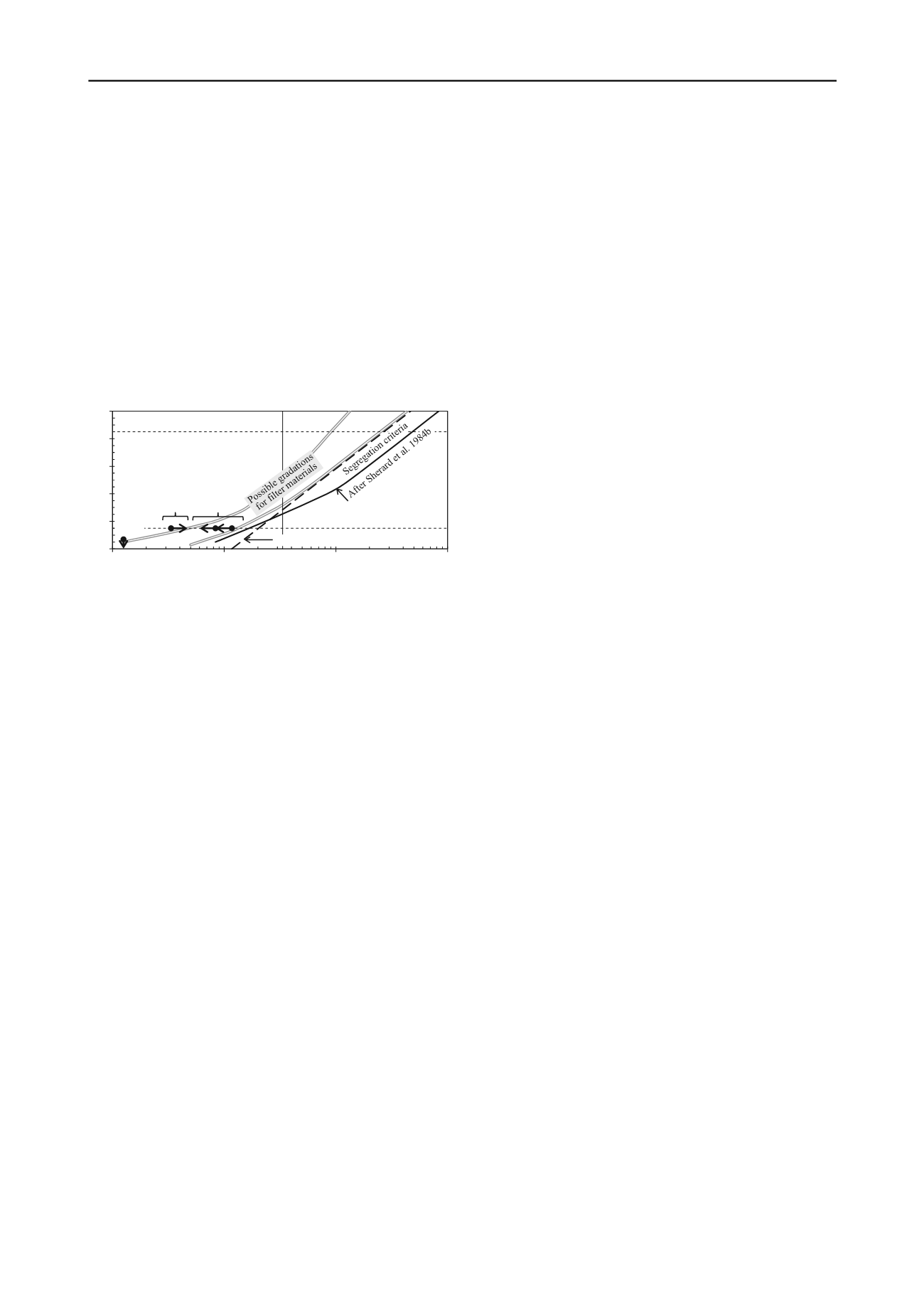

Figure 2: Summary of filter criteria.
