Table 3. Moments of the distribution of R = log (P
CTL
/P
D&Q
) for Janbu
nd Chellis formulas
a
Pile driving formula
Mean
Variance
CTL=Janbu (set-based)
0.05977
0.05339
CTL=Chellis (rebound-based
0.02339
0.04523
Once again correlations with the Chellis formula exhibit a
smaller variance that those with Janbu’s.
6 APPLICATION AND RESULTS
Application of the proposed procedure was guided by the final
goal of developing plots that could provide sound statistical
justification to field operational rules that will lead to more
economical pile foundation solutions, such as shorter piles, with
the very same probability of failure (or reliability index,
).
Figures 4 and 5, developed by means of equations 3 to 6
with data from Tables 1 to 3, show the updated global safety
factor required to maintain the same reliability index (
) after
the distribution of the predicted ultimate load of the pile is
updated on the basis of field control measurements and the
corresponding pile driving formulas. The x-axis values are
possible observable results of the ratio P
OBS
/P
PRED
. In Figure 4,
set is the field control and Janbu is the formula used for P
OBS
prediction. In Figure 5 the performance of set and rebound are
compared for an intra-site variance of 0.08, while results in
Figure 4 explore four possible values of intra-site variance.
Figure 5 confirms previously discussed indications that
rebound-based control is slightly superior to set-based control.
Updated F from Janbu-interpreted set measurement,
for constant
(see legend for intra-site variances adopted)
1,5
1,75
2
2,25
2,5
0,5
0,75
1
1,25
1,5
P
OBS
/P
D&Q
F
0,08
0,12
0,16
0,20
D&Q only

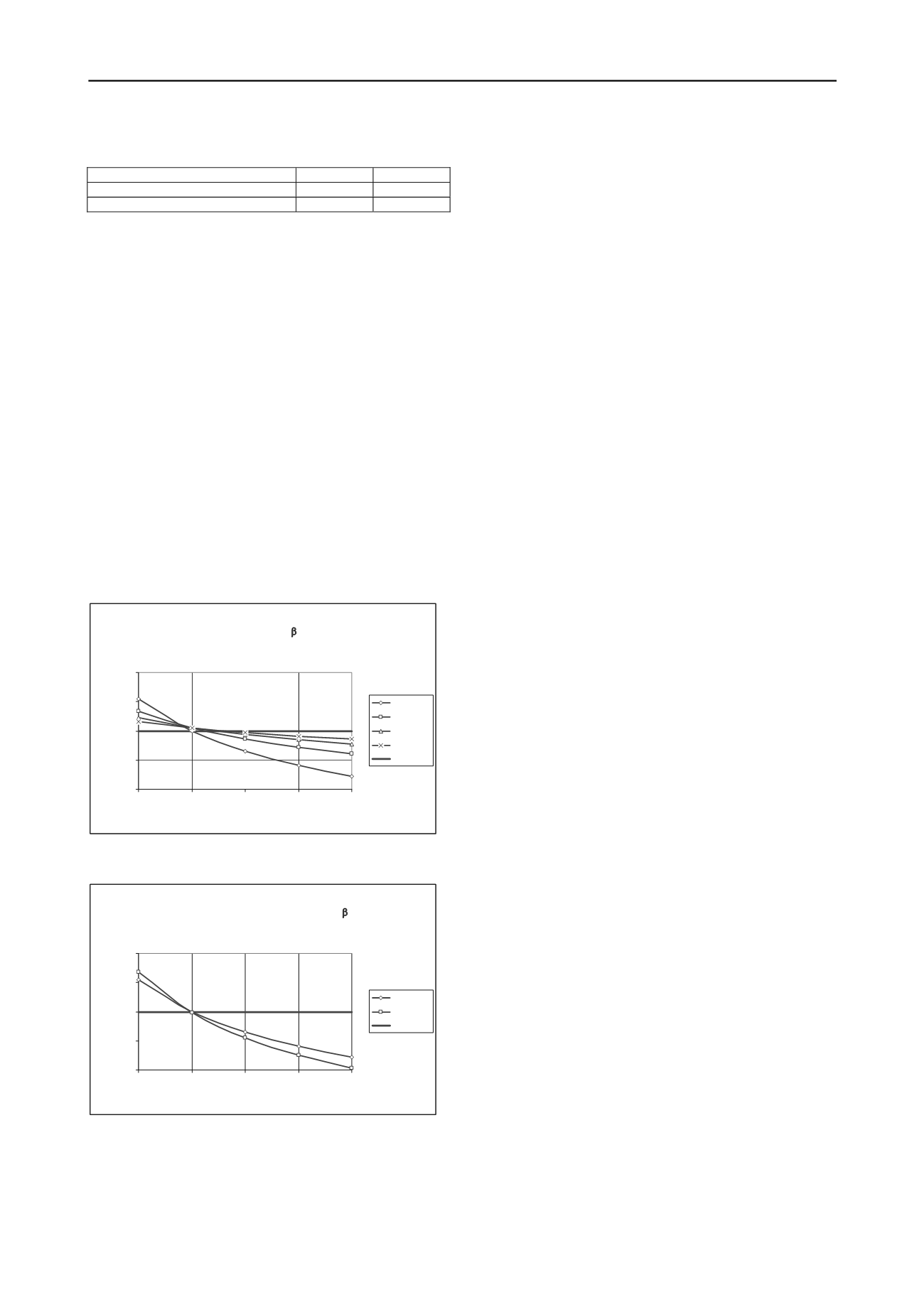

Figure 4 - Comparison of code-prescribed global safety factor (F=2)
with set-updated F values, for the same reliability index (
)
Updated F from interpreted set (Janbu)
or rebound (Chellis), for constant
Intra-site variance = 0,08
1,5
1,75
2
2,25
2,5
0,5
0,75
1
1,25
1,5
P
OBS
/P
D&Q
F
Janbu
Chellis
D&Q only
Figure 5 - Comparison of the performance of set and rebound field
controls for updating the safety factor while preserving the same
reliability index (
)
7 CONCLUSIONS
Duly interpreted field control measurements, recorded during
pile driving, facilitate more economical pile foundation design,
while maintaining the same safety level required by code-
prescribed safety factors. Figure 5, for example, sets a sound
foundation for operational rules that provide safe guidance for
early interruption of pile driving.
