residual shrinkage, air enters the pores close to the shrinkage
limit and pulls the particles together due to suction. This leads
to a further decrease in soil volume albeit lower than the volume
of water lost. Furthermore, the high volume change and the
closeness to the saturation line during normal shrinkage
corresponded well with the comparatively looser state and a
relatively homogeneous structure of the compacted sample.
Finally, the observed shrinkage curve is reversible because the
in situ soil has undergone numerous swell-shrink cycles since
deposition. Likewise, Tripathy et al. (2002) reported that
equilibrium conditions are usually attained after about four
cycles in compacted soils.
4 CONCLUSIONS
S
= 70%
0
10
20
30
40
50
Gravimetric Water Content (%)
0.2
0.6
1.0
1.4
Void Ratio
In situ soil
Compacted soil
S
= 100%
S
= 60%
S
= 50%
S
= 80%
The engineering properties of a typical expansive soil (from
Regina, Saskatchewan, Canada) were investigated under in situ
and compacted conditions. For both sample types, the clay
behavior was characterized by its internal structure comprising
of fissures and aggregates. The SWCC using water content on
the ordinate showed a bimodal distribution with two air entry
values: a lower value (10 kPa) corresponding to drainage
through fissures followed by a higher value (300 kPa for the in
situ sample and 100 kPa for the compacted sample) associated
with seepage through the soil matrix. Sample type became
irrelevant when the flow started to occur through the soil
matrix. The matrix air entry value was found to be about 6000
kPa when the SWCC was plotted in the form of the degree of
saturation versus soil suction. Likewise, the shrinkage curve
was found to be S-shaped and included a low structural
shrinkage followed by a sharp decline during normal shrinkage
and then by a low decrease during residual shrinkage. The
extent of volume change that depends on the initial void ratio
must be calculated from the reversible swell-shrink curve.
5 ACKNOWLEDGEMENTS
The authors acknowledge the material and financial support
provided by the Saskatchewan Ministry of Highways and
Infrastructure and the University of Regina for providing
laboratory space.

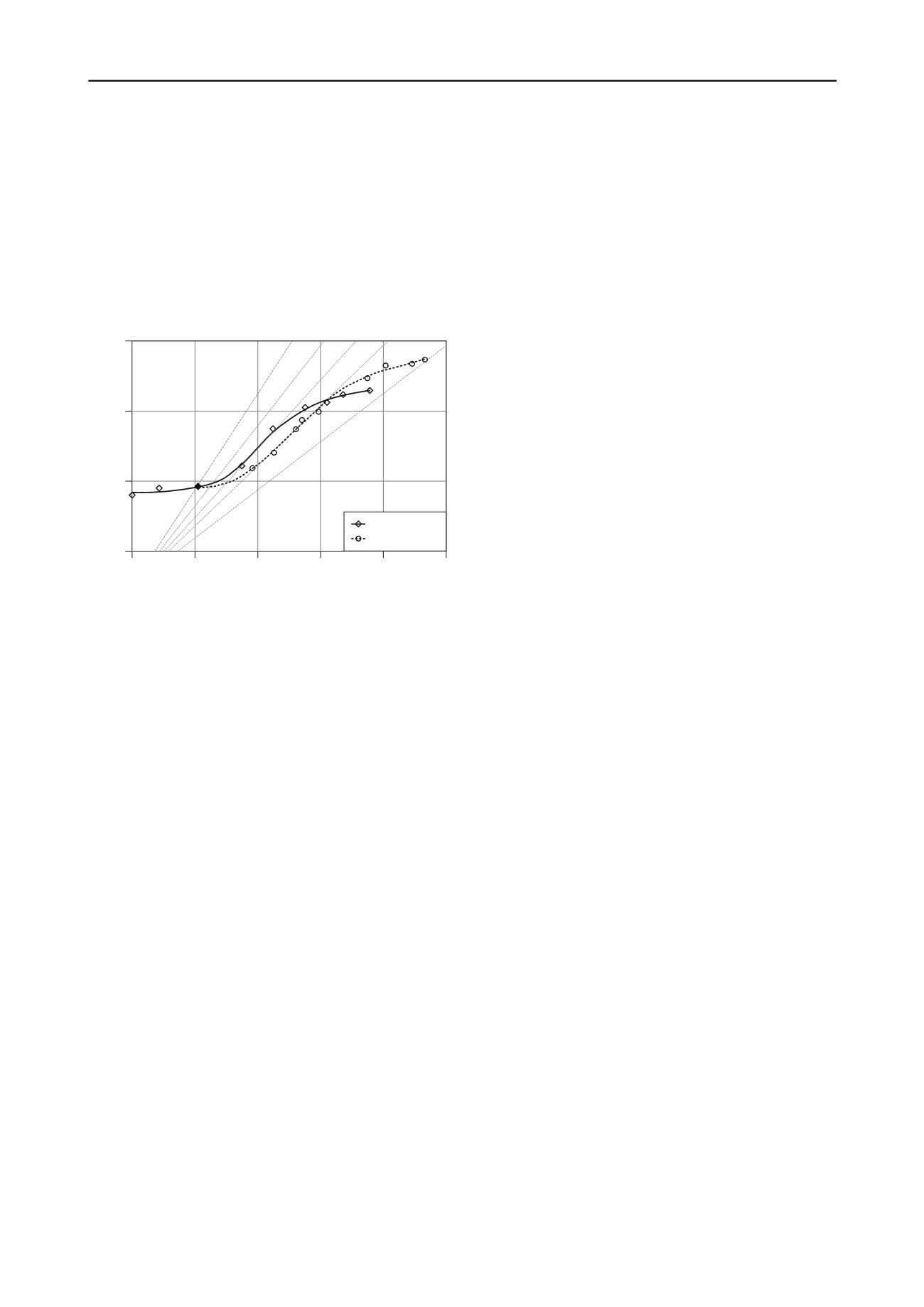

Figure 4. Shrinkage curve
Theoretically, the shrinkage curve comprises of two straight
lines: a sloped line closely following the
S
= 100% line that
joins a horizontal line at a void ratio associated with the
shrinkage limit of the soil. This means that soils essentially
remain saturated up to the shrinkage limit following a J-shaped
curve. Due to the presence of fissures, the investigated soil (in
both in situ and compacted conditions) exhibited deviations
from this theoretical behavior.
6 REFERENCES
Azam S. and Ito, M. 2011. Unsaturated soil properties of a fissured
expansive clay.
Proceedings, 64th Canadian Geotechnical
Conference
, Toronto, Canada. 313:1-5.
Azam, S. and Wilson, G.W. 2006. Volume change behavior of a
fissured expansive clay containing anhydrous calcium sulfate.
Proceedings, 4th International Conference on Unsaturated Soils
,
Carefree, Arizona, USA. 1, 906-915.
The definition the degree of saturation for expansive soils is
not straight forward. Since such soils consist of discontinuities
and soil aggregates, the calculated degree of saturation pertains
to an average value for the entire soil mass. This definition was
used in Figure 3 because it permits easy calculations. A more
accurate approach is to consider only the soil aggregates as
saturated up to the matrix air entry value of Figure 3 and the
fissures as air filled cracks. This is close to an equilibrium soil
microstructure that allows alternate swelling and shrinkage. In
this approach, the change of water volume in the soil mass
equates to the volume change of the soil aggregates and that of
the cracks. Gens and Alonso (1992) explained the two levels of
soil structure in their framework as follows: the micro-level is
governed by physicochemical interactions between the
expansive clay minerals thereby forming aggregates whereas
the macro-level includes both the aggregates and the fissures.
Fityus, S. and Buzzi, O. 2008. The place of expansive soils in the
frameworks of unsaturated soil mechanics.
Applied Clay Science
43, 150-155.
Gens, A. and Alonso, E.E. 1992. A framework for the behaviour of
unsaturated expansive clays.
Canadian Geotechnical Journal
29,
1013-1032.
Haines, W.B. 1923. The volume change associated with variations of
water content in soil.
Journal of Agricultural Science
13, 296-310.
Hu, Y. and Hubble, D.W. 2005. Failure conditions of asbestos cement
water mains.
Canadian Geotechnical Journal
34, 608-621.
Ito, M. and Azam, S. 2013. Engineering properties of a vertisolic
expansive soil deposit
. Engineering Geology.
152(1):10-16
Ito, M. and Azam, S. 2010. Determination of swelling and shrinkage
properties of undisturbed expansive soils.
Geotechnical and
Geological Engineering
28, 413-422.
Ito, M. and Azam, S. 2009. Engineering characteristics of a glacio-
lacustrine clay deposit in a semi-arid climate.
Bulletin of
Engineering Geology and the Environment
68, 551-557.
Overall, water flow through expansive soils is governed by
soil structure as indicated by bimodal SWCCs for both
undisturbed and compacted samples: sample type becomes
irrelevant when the flow starts to occur through the soil matrix.
Likewise, the S-shaped swell-shrink curve confirms the
structure dominant volume change behavior of such soils for
both samples. In the absence of an adequate definition for the
degree of saturation, soil state pertains to the initial void ratio.
This parameter governs the extent of volume change that, in
turn, must be calculated from the reversible swell-shrink curve
for expansive soils.
Kelly, A.J., Sauer, E.K., Barbour, S.L., Christiansen, E.A., and Widger,
R.A. 1995. Deformation of the Deer Creek bridge by an active
landslide in clay shale.
Canadian Geotechnical Journal
32, 701-724.
Leong, E.C., Tripathy, S. and Rahardjo, H. 2003. Total suction
measurement of unsaturated soils with a device using the chilled-
mirror dew-point technique.
Geotechnique
53, 173-182.
Marinho, F.M.A. 2005. Nature of soil-water characteristic curve for
plastic soils.
Journal of Geotechnical and Geoenvironmental
Engineering
131, 654-661.
Mitchell, J.K. and Soga, K. (2005).
Fundamentals of Soil Behaviour
.
3rd ed., John Wiley and Sons, Inc. New York, NY, USA.
Prakash, K., Shidharan, A. Baba, J.A., and Thejas, H.K. 2008.
Determination of shrinkage limit of fine-grained soils by wax
method.
Geotechnical Testing Journal
32, 86-89.
Tripathy, S., Subba Rao, K.S., and Fredlund, D.G. 2002. Water content-
void ratio swell-shrink paths of compacted expansive soils.
Canadian Geotechnical Journal
39, 938-959.
