(a)
(b)

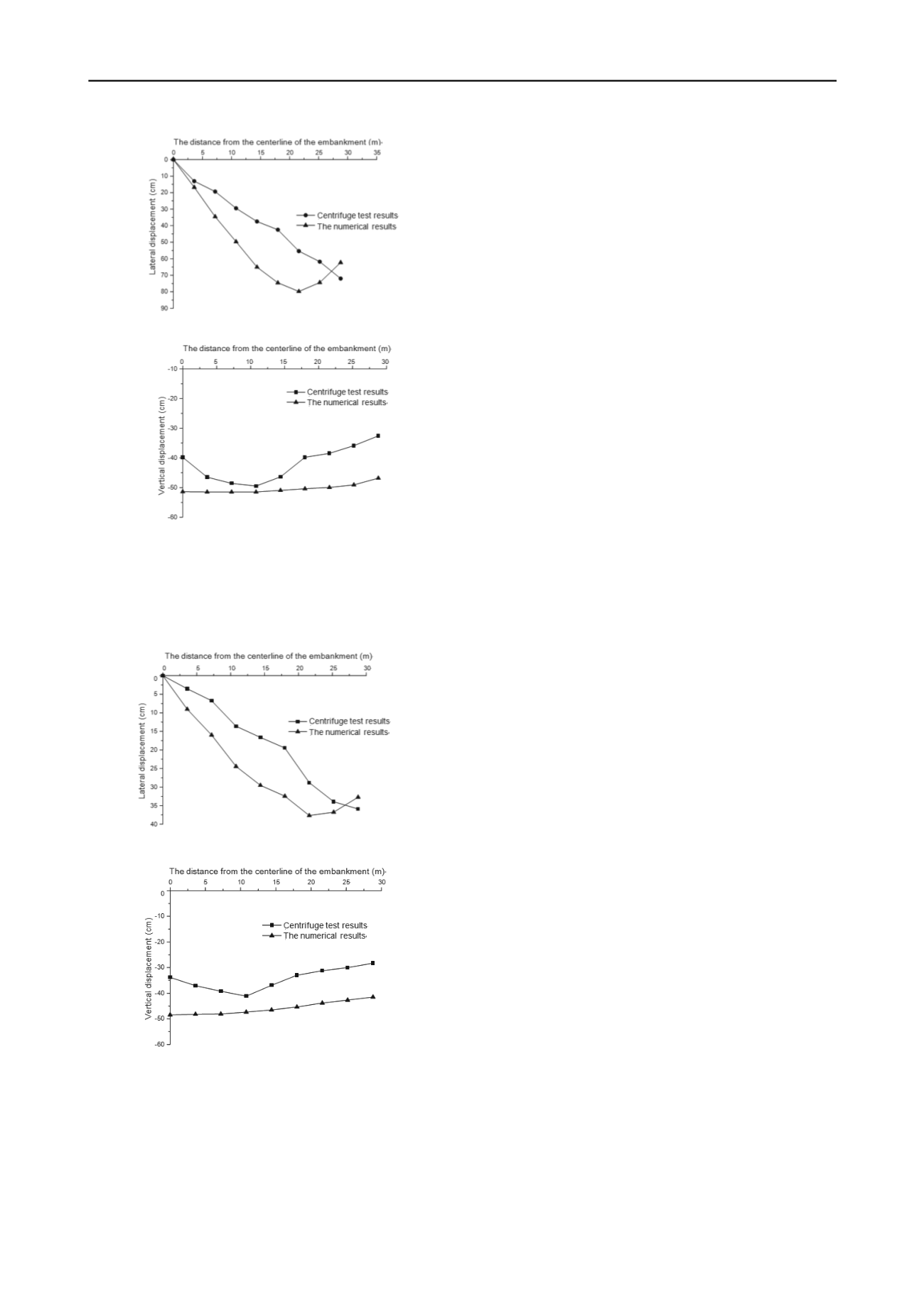

Figure 7. measured and computed displacement of unreinforced model
The comparison between the computed and observed
displacement both in the horizontal direction and in the vertical
direction for the reinforced embankment are shown in Fig.8.
The computed displacement is quite close to the observed
values for both lateral displacement and vertical displacement.
(a)
(b)
Figure 8. Measured and computed displacement of reinforced model
The behavior of reinforced embankment and unreinforced
embankment was successfully investigated using centrifuge
modeling and finite element analysis. The comparisons between
the centrifuge tests and computed results indicated the utility of
fibers can enhance overall stability of embankment. For the case
of reinforced embankments with fibers, it was found that the
deformation, the magnitude of stress, and their variation range
was considerably less than those for unreinforced case. Also,
the fiber reinforcement constrained the lateral displacement
effectively, and the distribution of stress and deformation was
harmonious comparing with the unreinforced.
When using geosynthetic fibers to reinforce embankment, it
also shows two advantages: (1) reinforced embankment can
resist cracks due to the network of intertwined fibers, and(2) the
fiber reinforced soil is closer to a homogeneous, isotropic
material than unreinforced soil.
REFERENCES
Vidal, M.H. 1978. The development and future of reinforced earth.
Proceedings of a SymposiumReinforcement at the ASCE Annual
Convention
. Pittsburgh, Pennsylvania, 1-61.
Xiong Youyan.1989.
Geosynthetic-reinforced soils
. Chongqing
Highway Science Research Institute, Chongqing, China.
Tang Chaosheng, Shi Bin and Gu Kai. 2011. Microstructural study on
interfacial interactions between fiber reinforcedment.
Journal of
Engineering Geology
19(4), 610-614.
Jie Yuxin and Li Guangxin. 1999. A study on colculation method of
texsol.
China Civil Engineering Journal
2(5), 51-55.
Bao Chenggang and Ding Jinhua. 2012. Researches and applications of
fiber reinforced soils. Soil Engineering and Foundation26(1), 80-83.
Jie Yuxin, Li Guangxin and Chen Lun. 1998. Study of centrifugal
model tests on texsol and cohesive soil slopes.
Chinese Journal of
Geotechnical Engineering
20(4), 12-15.
Yang Xiwu and Ouyang Zhongchun. 2000. Experimental study on the
strengthened sreep slopes.
China Civil Engineering Journal
33(5),
88-91.
