2402
Proceedings of the 18
th
International Conference on Soil Mechanics and Geotechnical Engineering, Paris 2013
Samples having 70% relative density and subjected to CSR of
0.12 reached cyclic double amplitude of 4% shear strain at
nearly 205 cycles. In case of samples having 65% relative
density and subjected to CSR of 0.12 reached cyclic double
amplitude of 4% at nearly 57 cycles.
2 SUMMARY AND CONCLUSIONS
The constant volume cyclic shear response of marine silty sand
was examined using data from CDSS tests.
The intent was to compare the shear response of the silty sand
specimens under different relative densities.

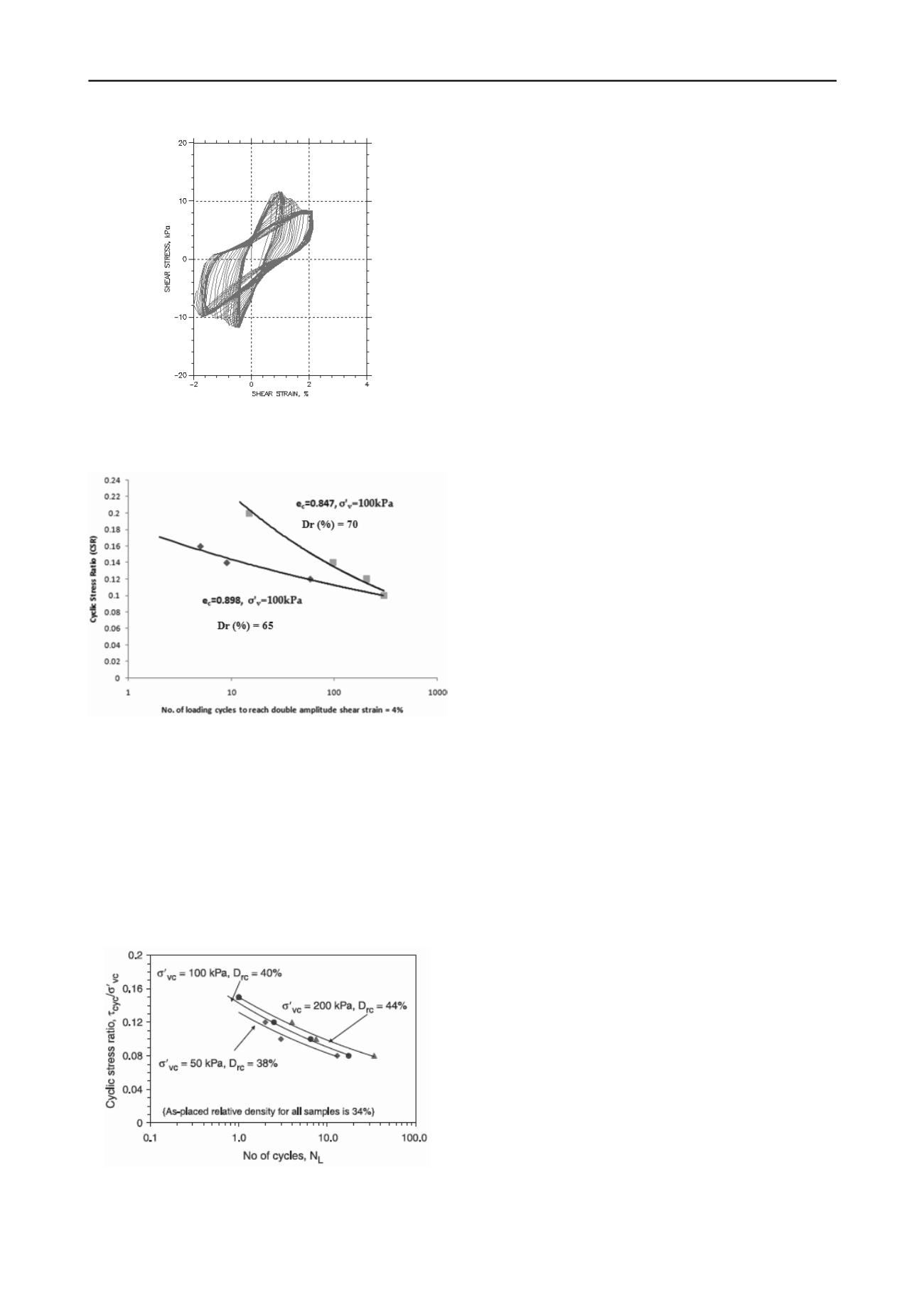

Figure 11 Stress-strain response of marine silty sand under constant
volume cyclic DSS loading (σ’
v
= 100 kPa; Dr (%)= 65, CSR = 0.12; α=
0.0; OCR = 1.0).
samples having higher value of cyclic stress ratio and/or low
relative density fail at a small number of loading cycles. It is
found in this particular study that the number of loading cycles
required to reach the threshold strain is not much different for
two relarive densities after 300 loading cycles. The trends are
little different from the previous study reported in which the
curves are almost parallel even in high number of cycles.
3 ACKNOWLEDGEMENT
This research is supported by the Ministry of Land, Transport
and Maritime Affairs, Korea 2010 research grant (2010
Construction Technology Innovation Program, 10-CTIP-E04).
4 REFERENCES
Andersen K.H 2009. Bearing capacity under cyclic loading- offshore,
along the coast, and on land. The 21st Bjerrum
Lecture presented in Oslo, 23November 2007”
. NRC
Research Press
Web site (
Baxter C.D.P, Bradshaw A.S., Ochoa-Lavergne M. and Hankour
R. 2010. DSS Test Results using Wire-Reinforced
Membranes and Stacked Rings
. GeoFlorida 2010 ASCE
.
Boulanger R.W & Seed R.B. 1995 . Liquefaction of sands under
Bidirectional monotonic and cyclic loading.
Journal of
Geotechnical Engineering ASCE
Vol. 121, No. 12 pp. 870-
Figure 12 CSR versus No. of Loading cycles to reach double amplitude
shear strain of 4% for marine silty sand
878.
Bjerrum, L., and Landva, A. 1966. Direct simple-shear tests on a
Figure 12 shows the number of loading cycles versus cyclic
stress ratio that reach shear strain of 4%. As expected, samples
having higher value of cyclic stress ratio and/or low relative
density fail at a small number of loading cycles. It is found in
this particular study that the number of loading cycles required
to reach the threshold strain is not much different for two
relarive densities after 300 loading cycles. The trends are little
different from the previous study reported (Fig. 13) in which the
curves are almost parallel even in high number of cycles.
Norwegian quick clay.
Geotechnique
16(1), 1-20.
Dyvik, R., Berre, T., Lacasse, S., and Raadim, B. 1987.
Comparison of truly undrained and constant volume direct
simple shear tests
. Geotechnique
37(1), 3-10.
Idriss, I. M., and Boulanger, R. W. 2008. Soil liquefaction during
Earthquakes. Monograph MNO-12,
Earthquake Engineering
Research Institute, Oakland, CA
.
Maria V. Sanin, Wijewickreme D. 2011. Cyclic shear response of
undisturbed and reconstituted Fraser River Silt.
Pan-Am CGS
Geotechnical Conference.
Safdar M., Kim, J.M. (2013). “Cyclic Behavior of Marine Silty Sand”
Electronic Journal of Geotechnical Engineering (EJGE)
Vol.18A, pp. 209-218.
Soren K. N., Amir Shajarati, K.W.Sorenson, L.B. Ibsen 2012.
Behaviour of Dense Frederikshavn sand during cyclic
Loading.
DCE Technical Memorandum No. 15
Vucetic M. & Dobry R. 1988. Degradation of marine clays
under cyclic loading.
Journal of Geotechnical Engineering
ASCE
Vol. 114, No. 2 pp. 133-149.
Wijewickreme D. 2010. Cyclic shear response of low plastic Fraser
River silt.
Proceedings of the 9th U.S. National and 10th
Canadian conference on Earthquake Engineering
Wijewickreme D., Sanin M.V. and Greenaway G.R. (2005)
Cyclic shear response of fine-grained mine tailings.
Canadian Geotechnical Journal
Vol. 42 pp. 1408-1421
Wijewickreme, D., Sriskandakumar, S., and Byrne, P. 2005.
Cyclic loading response of loose air-pluviated
Fraser River sand for validation of numerical models
simulating centrifuge tests.
Canadian Geotechnical Journal
Figure 13 Effect of stress densification on cyclic resistance of loose air-
pluviated sand (Wijewickreme et al., 2005)
42(2), 550-561.
