velocity vectors on these cutting planes show dominant S-wave
motions (from right to left) in the central part of the specimen
while minor P-wave motions developed on the sides (with the
particle on the right moving downwards and the particle on the
left moving upwards). Though the P-waves travel faster, they
cause little interference at the central part of the specimen where
the receivers are located. At the time shown in Figure 7, the S-
wave front just passes cutting plane 1-1 but has not yet reached
cutting plane 2-2. A significant amount of additional particle
level information is available from DEM simulations, including
displacement vectors, contact forces, and contact slip. This
information is being analyzed as part of ongoing studies into the
fundamental nature of shear wave propagation in granular
assemblies.
7 REFERENCES
Agnolin, I., and Roux, J. (2007). "Internal states of model isotropic
granular packings. III. Elastic properties."
Physical Review E -
Statistical, Nonlinear, and Soft Matter Physics
, 76(6).
Belheine, N., Plassiard, J. -., Donze, F. -., Darve, F., and Seridi, A.
(2009). "Numerical simulation of drained triaxial test using 3D
discrete element modeling."
Comput.Geotech.
, 36(1-2), 320-331.
Blewett, J., Blewett, I. J., and Woodward, P. K. (2000). "Phase and
amplitude responses associated with the measurement of shear-
wave velocity in sand by bender elements." Can. Geotech. J., 37
1348-1357.
Evans, T. M., and Frost, J. D. (2007). "Shear banding and
microstructure evolution in 2D numerical experiments." Geo-
Denver 2007: New Peaks in Geotechnics, Febrary 18, 2007 -
Febrary 21, American Society of Civil Engineers, Denver, CO,
United states, 28.
Evans, T.M., T.S. Yun, and J.R. Valdes. (2011). “Effective Thermal
Conductivity in Granular Mixtures: Numerical Studies,”
IS-Seoul:
Fifth International Symposium on Deformation Characteristics of
Geomaterials
, Seoul, Korea, August 31-September 3, 6 pp.
1
1
Fam, M., and Santamarina, J. C. (1997). "A study of consolidation using
mechanical and electromagnetic waves." Geotechnique, 47(2), 203-
219.
Fernandez, A. L. (2000). "Tomographic Imaging the State of
Stresses." PhD Dissertation, Georgia Institute of Technology,
Atlanta.
2
2
Hardin, B. O., and Richart, J., F.E. (1963). "Elastic wave velocities in
granular soils." ASCE -- Proceedings -- Journal of the Soil
Mechanics and Foundations Division, 89 33-65.
Jacobson, D. E., Valdes, J. R., and Evans, T. M. (2007). "A numerical
view into direct shear specimen size effects."
Geotech Test J,
30(6),
512-516.
Lee, J., and Santamarina, J. C. (2005). "Bender elements: Performance
and signal interpretation." J.Geotech.Geoenviron.Eng., 131(9),
1063-1070.
Li, L., and Holt, R. M. (2002). "Particle scale reservoir mechanics." Oil
and Gas Science and Technology, 57(5), 525-538.
Montoya, M., Gerhard, R., DeJong, J., Weil, M., Martinez, B., and
Pederson, L. (2012 (in press)). "Fabrication, Operation, and Health
Monitoring
of
Bender
Elements
for
Aggressive
Environments." Geotechnical Testing Journal, 35(5), 1-15.

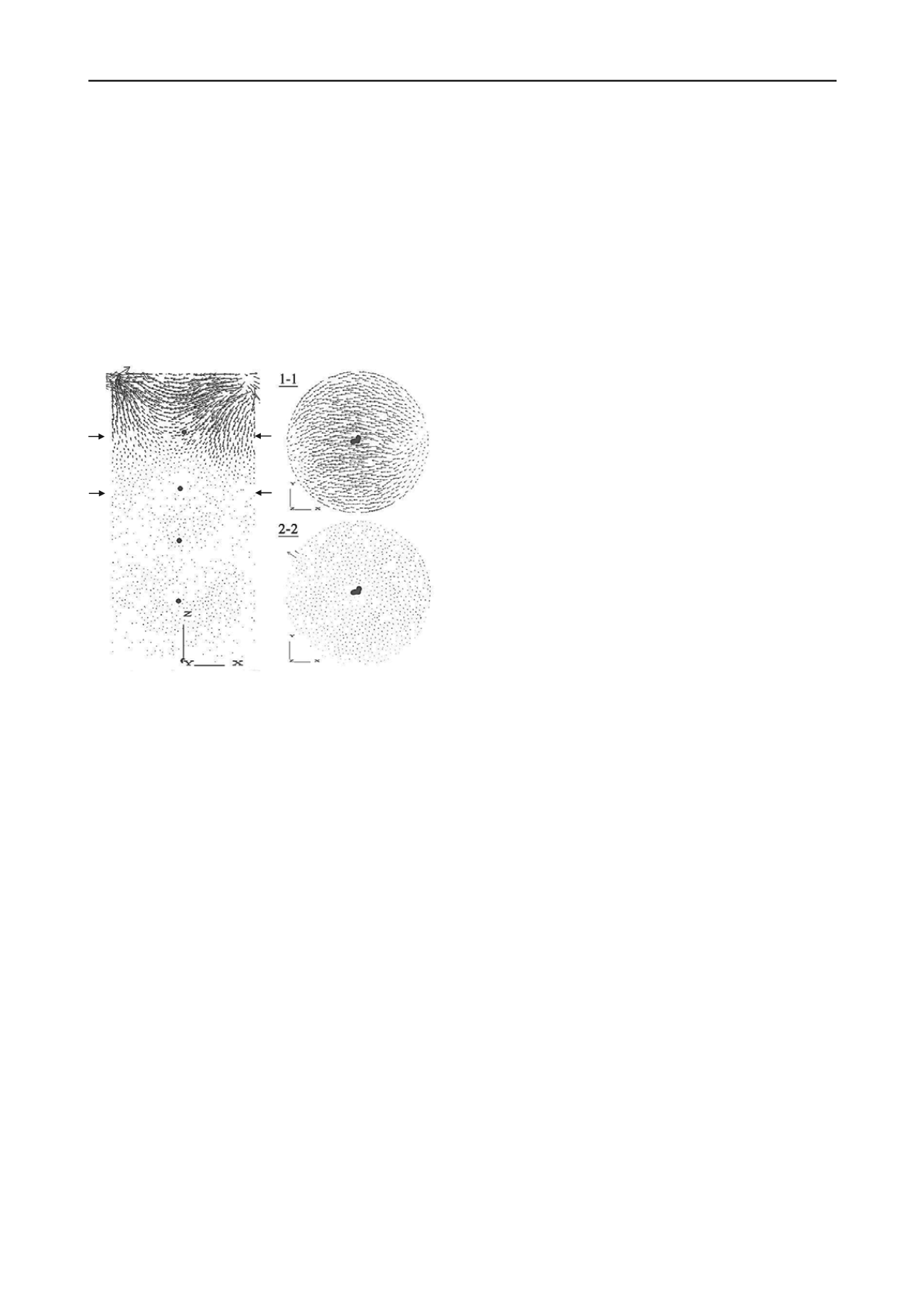

Figure 7. Particle velocity vectors on different cutting planes of a DEM
specimen at a 10ms time point after excitation
6 CONCLUSION
This paper presents a DEM study of S-wave propagation in
random assemblies of spherical particles. DEM simulations
provide high quality receving S-wave signals, given that the
respsone is free of factors such as cross-talk, systen delay, and
environmental noise. A multiple receiver setup allows for more
reliable S-wave velocity dermination.
O'Donovan, J., O'Sullivan, C., and Marketos, G. (2012). "Two-
dimensional discrete element modelling of bender element tests on
an idealised granular material." Granular Matter 14, 733-747.
O'Sullivan, C. (2011). Particulate discrete element modelling : a
geomechanics perspective. Taylor & Francis, London.
Excitation frequency showed significant impact on the
response of specimen. Similar to laboratory observations, a
resonant frequency that resulted in the strongest resposne was
identified in DEM simulations. The granular spcecimen
functioned as a low-pass filter when excited by a sine pulse with
different frequencies. Frequency components that were higher
than the resonant frequency were significanlly attenuated.
Dispersion was observed when the excitation frequencies were
low. The affect of excitation frequency on S-wave velocity
became less appreciable when the frequencies were higher than
the resonant frequency.
Patel, A., Bartake, P. P., and Singh, D. N. (2009). "An empirical
relationship for determining shear wave velocity in granular
materials accounting for grain morphology." Geotech Test J, 32(1),
1-10.
Sadd, M. H., Tai, Q., and Shukla, A. (1993). "Contact law effects on
wave propagation in particulate materials using distinct element
modeling." Int.J.Non-Linear Mech., 28(2), 251-65.
Sanchez-Salinero, I., Roesset, J. M., and Stokoe, K. H. (1986).
"Analytical studies of body wave propagation and attenuation."
Rep. No. Report GR 86-15,University of Texas, Austin.
Santamarina, J. C. (2001). Soils and waves : particulate materials
behavior, characterization and process monitoring. Wiley, New
York.
Particle size had less of an impact on S-wave veloicty while
the resonant frequency presented a inverse linear relathiship
with particle size. Mass scaling can be applied in DEM wave-
propagation simulation in terms of S-wave velocity analysis
when the transmitted frequency is selected appropriately.
Styler, M. A., and Howie, J. A. (2012). "Comparing frequency and time
domain interpretations of bender element shear wave
velocities." GeoCongress 2012, ASCE, Oakland, CA, 2207-2216.
Viggiani, G., and Atkinson, J. H. (1995). "Interpretation of bender
element tests." Geotechnique, 45(1), 149-154.
Yang, J., and Gu, X. Q. (2012). "Shear stiffness of granular material at
small strains: does it depend on grain size." Géotechnique, in press.
The S-wave velocity increased with increasing effective
confining stress, and is describled by an emprical fomula
previously developed based on laboratory tests. The fitting
parameters obtained in this DEM simulation were similar to
those for sands and OC clays measured in the lab.
Zhao, X., and Evans, T. M. (2009). "Discrete simulations of laboratory
loading conditions." International Journal of Geomechanics, 9(4),
169-178.
Velocity vectors highlighted the complex motions of
individual particles during wave propagation. They showed
dominant S-wave motion along the central area of the specimen
along with minor P-wave motion on the sides.
