1754
Proceedings of the 18
th
International Conference on Soil Mechanics and Geotechnical Engineering, Paris 2013

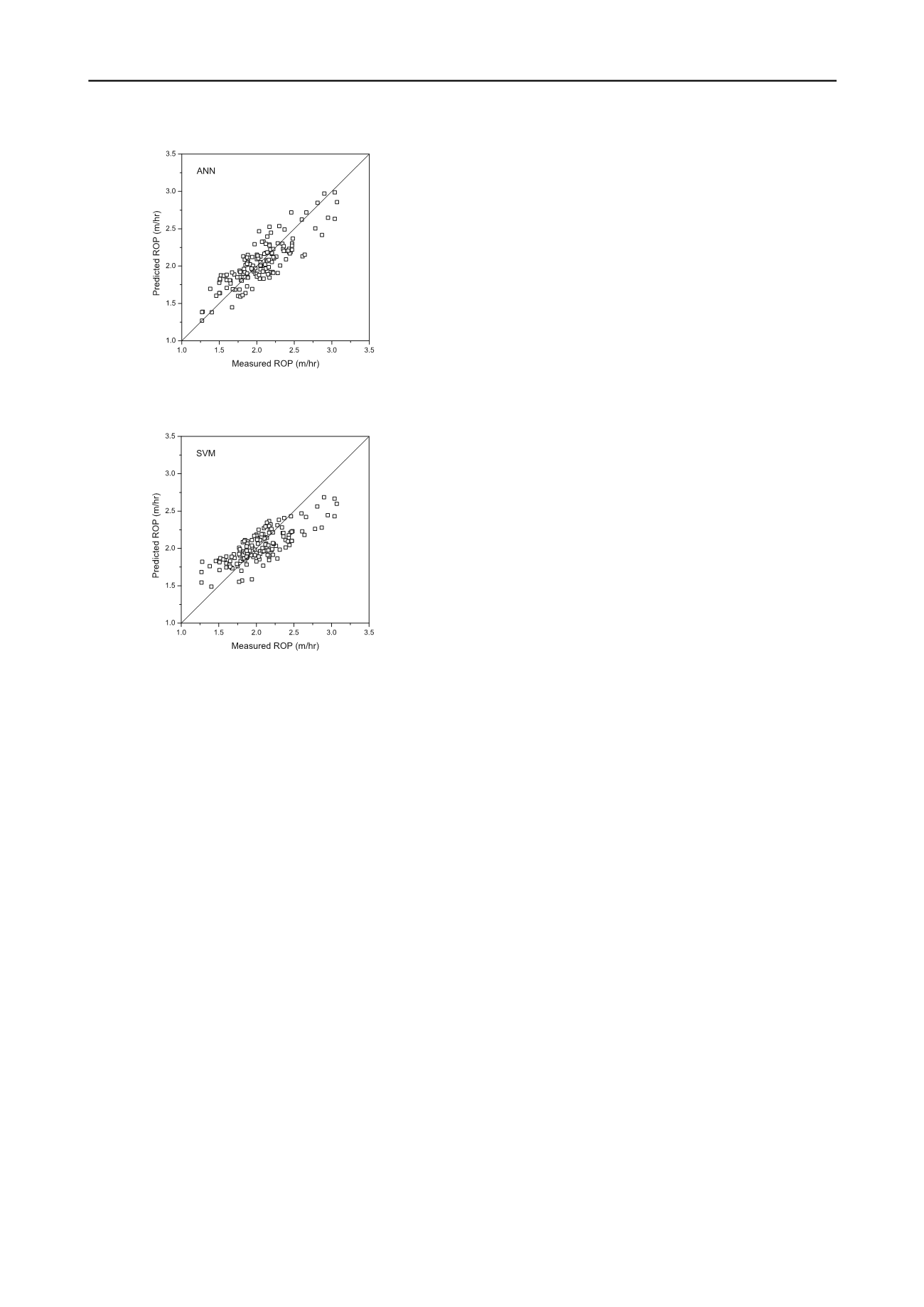

Figure 3. Comparison between the measured and predicted
ROP from the ANN model.
Figure 4. Comparison between the measured and predicted
ROP from the SVM model.
6 CONCLUSIONS
Using a database of geotechnical data published by Yagiz
(2008) ANN and SVM algorithms were applied in order to
develop new models to predict the machine performance.
In the training phases, using a cross-validation scheme, the
SVM algorithm had slightly better performances than the ANN
algorithm. However, using the induced model with all dataset,
the ANN gives lower errors and greater R than SVM.
When all the dataset is used ANN had even better
performance than the models presented by Yagiz (2008) and
Yagiz and Karahan (2011).
The most important input variable is PSI and the less
important input one is UCS.
7 ACKNOWLEDGEMENTS
This study was financed by the Portuguese Foundation for
Science and Technology - PEst-OE/ECI/UI4047/2011.
8 REFERENCES
Boubou R., Emeriault F., and Kastner R. 2010. Artificial neural network
application for the prediction of ground surface movements induced
by shield tunneling.
Can. Geotech. J
. 47, 1214–1233.
Cortes C. and Vapnik V. 1995. Support Vector Networks.
Machine
Learning
20(3): 273-297. Kluwer Academic Publishers.
Cortez P. 2010. Data Mining with Neural Networks and Support Vector
Machines using the R/rminer Tool, In: P. Perner (Ed.), Advances in
Data Mining. Applications and theoretical aspects. Proceedings of
10th Industrial Conference on Data Mining, Berlin, Germany,
Lecture Notes in Computer Science, Springer, 572-583.
Darabi A., Ahangari K., Noorzad A., Arab A. 2012. Subsidence
estimation utilizing various approaches – A case study: Tehran No.
3 subway line. Tunnelling and Underground Space Technology 31,
117–127
Efron, B. and Tibshirani R. 1993.
An Introduction to the Bootstrap
.
Chapman & Hall.
Feng X-T., Zhao H., Li S. 2004. Modeling non-linear displacement time
series of geo-materials using evolutionary support vector machines.
International Journal of Rock Mechanics & Mining Sciences
41,
1087–1107.
Gajewski J. and Jonak J. 2006. Utilisation of neural networks to identify
the status of the cutting tool point.
Tunnelling and Underground
Space Technology
21, 180–184
Haykin S. 1999.
Neural Networks - A Compreensive Foundation
. New
Jersey: Prentice-Hall, 2nd edition.
Jiang A.N., Wang S.Y., Tang S.L. 2011. Feedback analysis of tunnel
construction using a hybrid arithmetic based on Support Vector
Machine and Particle Swarm Optimization.
Automation in
Construction
20, 482–489
Javadi A. A. 2006. Estimation of air losses in compressed air tunneling
using neural network.
Tunnelling and Underground Space
Technology
21 (2006) 9–20.
Liu K.Y., Qiao C.S., Tian S.F. 2004. Design of tunnel shotcrete-bolting
support based on a support vector machine.
Int. J. Rock Mech. Min.
Sci.
41 (3),
Liu X., Shao C., Ma H. and Liu R. 2011. Optimal earth pressure balance
control for shield tunneling based on LS-SVM and PSO.
Automation in Construction
20, 321–327.
Lü Q., Chan C.L., Low B.K. 2012. Probabilistic evaluation of ground-
support interaction for deep rock excavation using artificial neural
network and uniform design.
Tunnelling and Underground Space
Technology
32, 1–18
Mahdevari S., Torabi S.R. and Monjezi M. 2012. Application of
artificial intelligence algorithms in predicting tunnel convergence to
avoid TBM jamming phenomenon.
International Journal of Rock
Mechanics & Mining Sciences
55, 33–44.
Mahdevari S. and Torabi S.R. 2012. Prediction of tunnel convergence
using Artificial Neural Networks.
Tunnelling and Underground
Space Technology
28 (2012) 218–228.
Martins F.F. and Miranda T.F.S. 2012. Estimation of the Rock
Deformation Modulus and RMR Based on Data Mining
Techniques.
Geotechnical and Geological Engineering
, 30 (4),
787-801.
Mohamadnejad M, Gholami R., Ataei M. 2012. Comparison of
intelligence science techniques and empirical methods for
prediction of blasting vibrations.
Tunnelling and Underground
Space Technology
28, 238–244.
Pourtaghi A. and Lotfollahi-Yaghin M.A. 2012. Wavenet ability
assessment in comparison to ANN for predicting the maximum
surface settlement caused by tunneling.
Tunnelling and
Underground Space Technology
28, 257–271
R Development Core Team 2010. R: A language and environment for
statistical computing. R Foundation for Statistical Computing,
Vienna, Austria.
, ISBN 3-900051-07-0.
Suwansawat S. and Einstein H. 2006. Artificial neural networks for
predicting the maximum surface settlement caused by EPB shield
tunnelling.
Tunnelling and Underground Space Technology
21,
133–150.
Yagiz S. 2008. Utilizing rock mass properties for predicting TBM
performance in hard rock condition.
Tunnelling and Underground
Space Technology
23, 326–339.
Yagiz S. and Karahan H. 2011. Prediction of hard rock TBM
penetration rate using particle swarm optimization.
International
Journal of Rock Mechanics and Mining Sciences
48, 427–433.
Yoo C. and Kim J.-M. 2007. Tunneling performance prediction using an
integrated GIS and neural network.
Computers and Geotechnics
34,
19–30.
