          Effectiveness of In-soil Seismic Isolation taking into account of Soil-Structure


          Interaction


          Efficacité d’ Isolement sismique dans le Sol tenant compte de l’interaction du Sol avec la Structure


          Tsatsis A.K., Anastasopoulos I.C., Gelagoti F.L., Kourkoulis R.S.



            Laboratory of Soil Mechanics, National Technical University of Athens



          ABSTRACT: In the present study an innovative seismic isolation method is proposed that introduces a sliding surface within the


          foundation soil.The sliding surface comprises of two synthetic liner layers at contact with each other creating an interface of small


          friction that enfolds the foundation soil. The effectiveness of the isolation system is explored as a function of the earthquake intensity


          accounting for soil-structure-interaction phenomena. It is shown that the proposed system serves as a fuse mechanism within the soil


          and substantially reduces the acceleration transmitted onto the structure. The isolated structure may be subjected to increased


          differential lateral displacement, due to sliding at the isolation interface – something that has to be considered in the design.


          RÉSUMÉ : Dans cette étude une méthode innovante d'isolement sismique est proposé, composé d’une surface de glissement dans le


          sol. La surface de glissement se compose de deux couches de revêtement synthétique, caractérisé d’une résistance réduite. L'efficacité


          du système proposé est explorée en fonction de l'intensité sismique. Il est démontré que le système proposé acte comme un


          mécanisme fusible dans le sol, réduisant considérablement l'accélération transmise sur la structure. La structure isolée peut être


          soumis à un déplacement différentiel latérale, en raison de glissement à l'interface d'isolation – quelque chose que doit être pris en


          compte dans le désign.


          KEYWORDS: soil-structure interaction ; in-soil isolation ; synthetic liner


          1 INTRODUCTION


          In the present study an isolation method is proposed that


          introduces a sliding surface within the foundation soil. The


          sliding surface comprises two layers of a smooth synthetic liner


          in contact with each other. Yegian et al. (2004a) were the first to


          propose the application of synthetic liners just below the


          foundation with the intention to introduce, an interface of small


          friction coefficient upon witch the structure would slide as a


          rigid block. To determine the properties of the interface,


          shaking table tests were conducted, concluding that the static


          and dynamic friction coefficient is of the order of 0.10 and 0.07,


          respectively. The same researchers (Yegian et al., 2004b)


          investigated the idea of such a sliding surface within the


          foundation soil, forming an isolated soil prism of ellipsoidal


          shape.


          Based on this idea, Georgarakos & Gazetas (2006)


          parametrically investigated the effect of the sliding surface


          geometry on the seismic response. Several geometries were


          investigated, ranging from cyndrical, to basin-shaped,


          trapezoidal, and trapezoidal with wedges. The latter was found


          to be the optimum solution, providing the restoring force of the


          cylindrical surface, while being significantly easier to construct.


          The systems functionality is based on the ability of the isolated


          soil to slide on the synthetic liner, while the two wedges offer


          the necessary restoring force through their weight. The response


          of this system can be seen as mechanically analogous to a mass


          sliding on a horizontal surface, being restrained by two springs


          that work only when compressed.


          The investigated system is schematically illustrated in


          Figure 1. The geometry of the isolation system is trapezoidal,


          with isolated wedges on the two sides. The synthetic liners are


          placed at a depth H = 2 m under the surface. The slope of the


          excavation trench is assumed equal to 1:1 – a realistic


          assumption for relatively competent soi. The isolated


          embankment comprises a dense gravel layer. The latter is


          modeled with a nonlinear constitutive model, with a Mohr-


          Coulomb failure criterion and non-associative flow rule. A


          rather large Young’s modulus E = 500 MPa is assumed, while


          the friction and dilation angles are equal to



            φ



          = 48


          o


          and ψ = 15


          o


          ,


          respectively. The two wedges are filled with pumice, a


          lightweight material of density



            ρ



          = 1 Mg/m


          3


          and relatively small


          stiffness



            E



          = 10 MPa, in order to impose the minimum possible


          resistance to the sliding motion of the embankment.


          The superstructure, an idealized bridge pier (for simplicity),


          is placed on top of the isolated embankment. The bridge pier is


          designed according to EC8, assuming a design acceleration


          a


          gr


          = 0.24g and behavior factor



            q



          = 2. Having an elastic natural


          period



            T



          = 0.48 sec, the design spectral acceleration is equal to


          SA = 0.3g. In order to undertake the resulting design bending


          moment



            M




            D



          = 43 MNm, a longitudinal reinforcement of


          100



            Φ



          32 is required, combined with transversal reinforcement of



            Φ



          32/8cm.



            1




            1




            1




            1




            h



          = 12 m



            d



          = 3 m



            B



          = 11 m



            στρώσεις γεωμεμβράνης




            κλίση




            πρανών




            2 m




            E, ρ




            E, ρ



          19 m


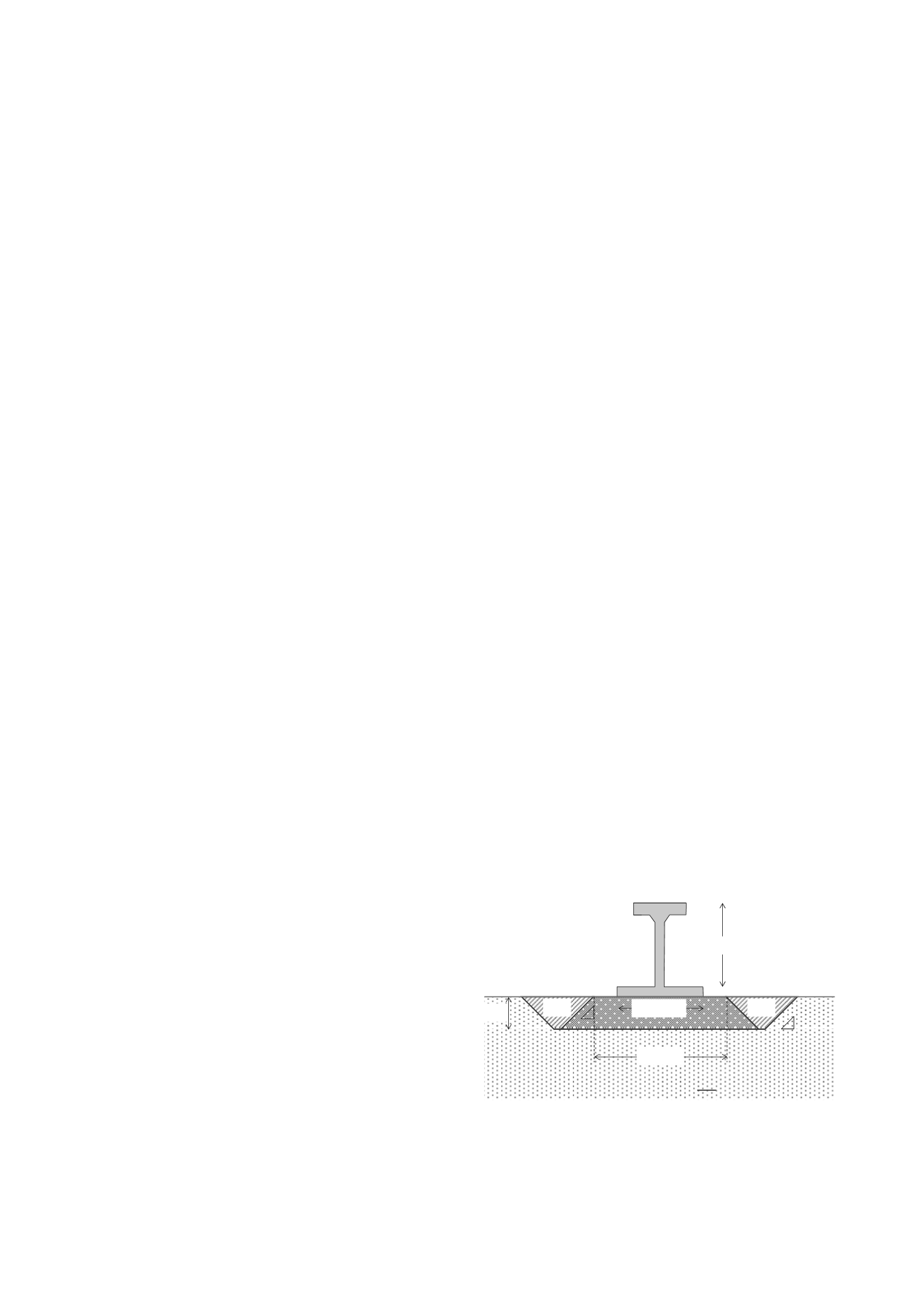

          Figure 1. Schematic illustration of the in-soil isolation system under


          consideration.
