Fig. 5 compares the maximum crest displacement of the dam
section without (solid lines) or with (dashed lines) provision of
Geosynthetics. It can be noted that with provision of
Geosynthetics the displacement of the crest is almost reduced to
one third. The reason for this drastic reduction in crest
displacement (with provision of Geosynthetics as a seepage
barrier) owns to the fact that dam body is not experiencing the
excess pore pressure during dynamic loading.
4.2.2
Acceleration – time history of earthquake data
Dynamic numerical analysis of the earthen dam section
(without and with provision of Geosynthetics) is performed
utilizing the acceleration-time history record of the available
26
th
January 2001 Bhuj earthquake data (Iyenger and Raghu
Kanth, 2006) as well as five other major earthquakes, i.e., El
Centro, North ridge, Petrolia, TAFT, Loma Prieta that occurred
in the past (total six). By doing so it was possible to examine
the stability of the dam section under different levels of
amplitudes, frequency and time duration. Detailed information
about the characteristics of these major earthquakes is available
in Srivastava (2010). For detailed discussion on the method of
analysis under earthquake loading condition, reader may refer to
the reference manual of the software tool.
Table 1 summarizes the maximum crest displacement of
the dam section under different circumstances. It can be noted
that provision of Geosynthetics, when used as a seepage barrier,
greatly reduces the deformation of the crest.
Table 1 Comparison of maximum x-crest displacement of dam
section under different earthquake loading
Famous
EQ
Maximum x-crest displacement
Without
Geosynthetics
With
Geosynthetics
Bhuj
EQ
0.187
0.056
EL Centro
0.232
0.087
North Ridge
0.764
0.232
Petrolia
0.880
0.209
TAFT
EQ
0.302
0.120
Loma Prieta
EQ
0.548
0.194
5 CONCLUSIONS
Use of Geosynthetics as seepage barrier not only control the
seepage losses but also enhances the stability of the dam section
under static as well as dynamic conditions. Under static
condition the factor of safety is increased 1.45 times and under
dynamic loadings deformation of the crest of the dam section
reduces to almost 3 times and the crest acceleration is reduced
to 2.5 times.
REFERENCES
Jewell, R. A. (1996).
Soil reinforcement with geotextiles
. American
Society of Civil Engineers.
Shukla, S. K., and Yin Jian-Hua (2006).
Fundamentals of geosynthetics
engineering
, Taylor & Francis group, UK.
Koerner, R. M. (2005).
Designing with geosynthetics
. Pearson Prentice
Hall.
Cazzuffi, D. (1987). The use of geomembrane in Italian dams.
Water
power and dam construction
, 39(3), 17-21.
ICOLD (1991).
Watertight geomembranes for dams: state of the art
.
ICOLD Bulletin, 78, Paris, 140 p.
ICOLD (1993a).
Reinforced rockfill and reinforced fill for dams
.
ICOLD Bulletin 89, Paris, 190p.
Cazzuffi, D. (2000).
Geosynthetics in dams
. IGS mini-lecture series on
geosynthetics.
(
access
date 12/9/2012)
Giroud, J. P. (1992). Geosynthetics in dams: two decades of experience.
Geotechnical fabrics report, 10, Part 1: No. 5, 6-9 & Part 2, No. 6,
22-28.
Navassartian, G., Gourc, J. P., and Brochier, P. (1993). Geocomposite
for dam shaft drain: La Parade dam, France, Geosynthetics Case
Histories, ISSMFE-TC 9, Bitech publishers, Richmond BC, 16-17.
Wilson, C. B. (1992). Repairs of reeves lake dam, Cobb county,
Georgia,
Proceedings of 1992 annual conference of the association
of stae dam safety officials
, Sept 1992, Baltimore, 77-81.
Sembenelli, P. (1990). Engineering geosynthetics in design and
construction of Jibiya dam.
Proceedings of 4th international
conference on Geotextiles, Geomembrane & related productes,
May-June, 1990, The Hague 2, 419-424.
Giroud, J. P., and Gross, B. A. (1993). Geotextiles filters for
downstream drain and upstream slope: Valcros dam, France,
Geosynthetics Case Histories, ISSMFE-TC 9, Bitech publishers,
Richmond BC, 2-3.
Delmas, Ph., Nancey, A., Faure, Y. H., and Farkouh, B. (1993). Long
term behaviour of a non-woven geotextile in a 21 year old dam.
Filters in geotechnical & hydraulic engineering, Balkema,
Rotterdam, 331-338.
Kern, F. (1977). An earth dam with a vertical downstream face
constructed using fabrics.
Proceedings of international conference
on the use of fabrics in geotechnics,
April 1977, Paris, 1, 91-94.
Giroud, J. P., and Bonaparte, R. (1993). Geosynthetics in dam
rehabilitation.
Proceedings of spec. Conf. On Geotechnical practice
in dam rehabilitation,
ASCE Geot. Special pub., 35, 1043-1074.
Weber, C. T., and Zornberg, J. G. (2008). Numerical analysis of leakage
through geomembrane lining system for dams. 1st Pan american
geosynthetics conf. & exhibition, 2-5 March, 2008, Cacun, Mexico.
Franz List (1999). Increasing the safety of tailing dams using geotextiles
& Geogrids. Mine Water and Environment, 1999 IMWA Congress,
Sevilla, Spain.
Richard A. Millet, P.E., Jennifer L. Williams, P.E., Dennis A. Minchow,
John B. Heap (2007). Using geosynthetics to rehabilitate Fisher
Cañon Dam and Reservoir.
(
(Date
of access 12/9/2012).
Benjamin C. Doerge, Trent Street, John Chua, Rex Stambaugh, and
James McHenry (2011). Using geotextiles to repair earth dams.
,
(Date of access 12/ 9/2012)

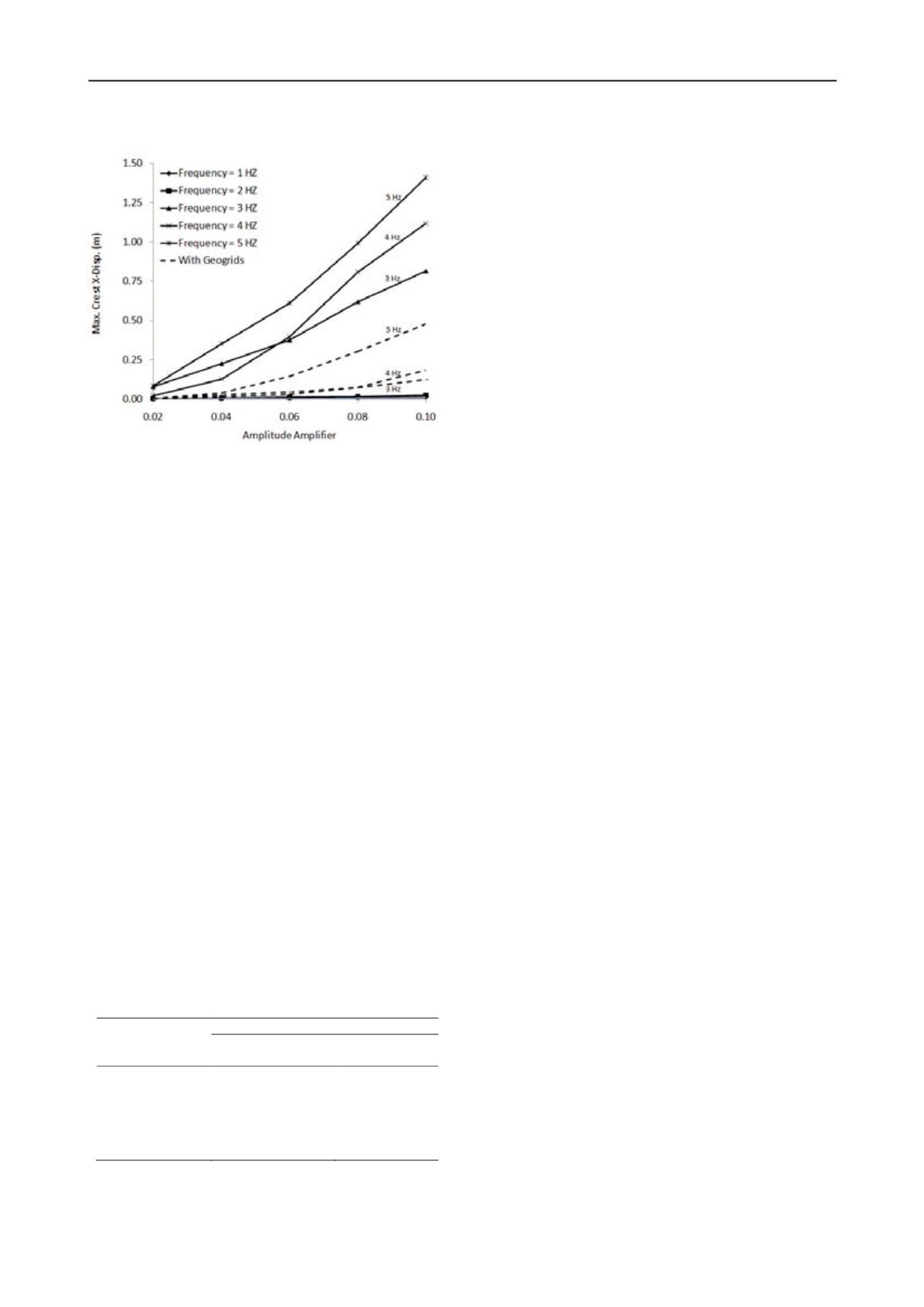

Figure 5 Comparison of maximum crest displacement of
