Actes du colloque - Volume 2 - page 633

1512
Proceedings of the 18
th
International Conference on Soil Mechanics and Geotechnical Engineering, Paris 2013
Table 2. Safety factors required for tailings dams in Spanish legislation.
Actions
Class Category
Normal Accidental Extreme
1
A or B
1.4
1.3
1.2
2
C or D
1.3
1.2
1.1
3
C or D
1.2
1.1
1.0
4 ALMAGRERA TAILINGS DAM
Almagrera tailings dam has a height of 35 m above foundation
at axis. The height above the lowest foundation level is 37.3 m
(Figure 3).
It has an upstream sloping core. The foundation is formed by
alternation of volcanic and inter-stratified sedimentary rocks.

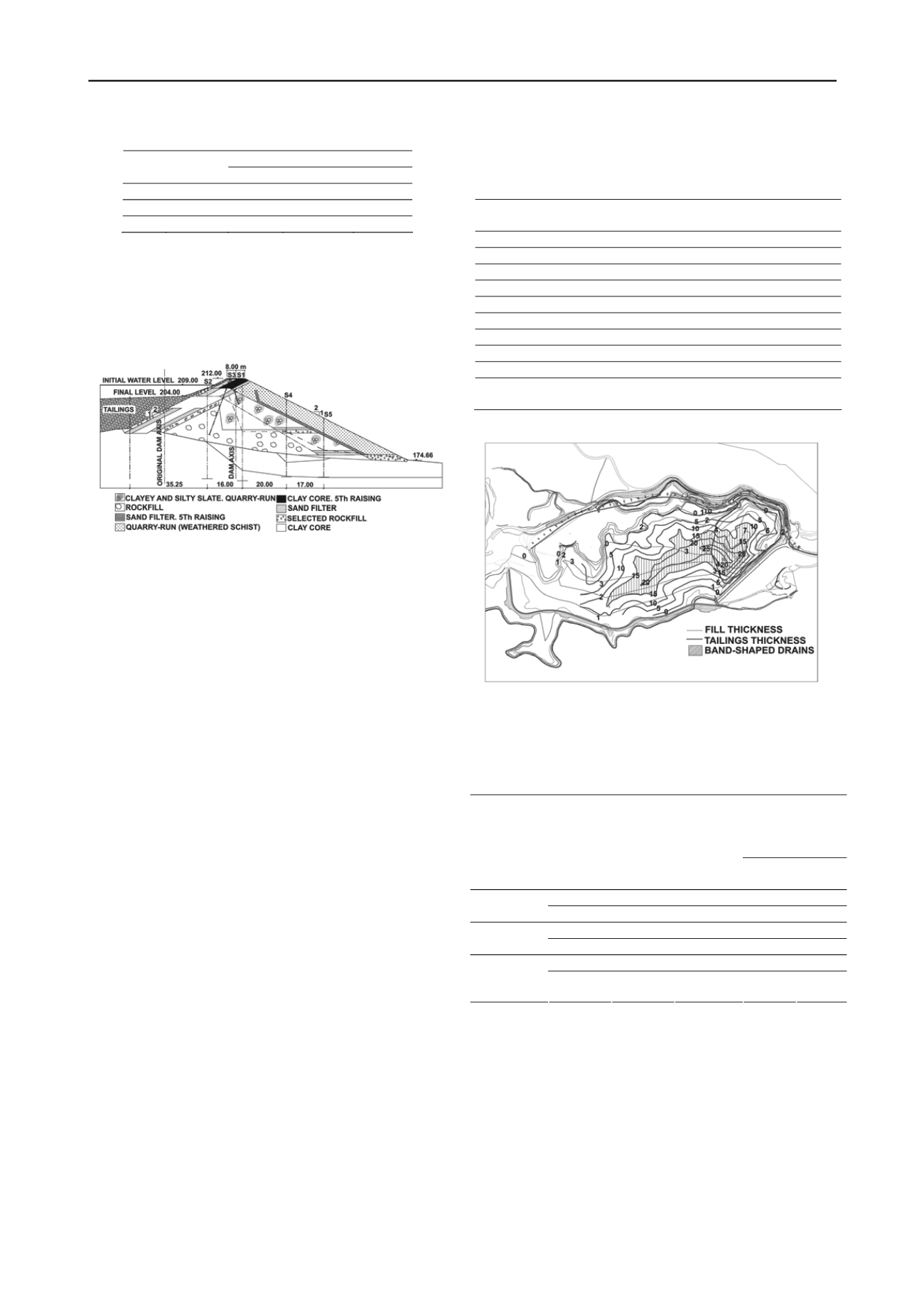

Figure 3. Central cross-section of Almagrera dam before closure.
The dam corresponds to the downstream borrow material
type, and was raised 5 times adding material into the
downstream side. The slide shows the original dam axis and the
states of the dam at the end of 3rd, 4th and 5th heightenings.
The downstream slope was 1.7 (H): 1 (V) up to the third phase,
and 2 (H): 1 (V) for the last two phases. According to a report
delivered before the 5th phase construction, the filter criteria
were not fulfilled. This way, after the 4
th
phase, the dam rather
behaved as a homogeneous dam. During the 5
th
phase, an
inclined sand and gravel filter was placed between the 4
th
and
5
th
phase shells using normalised filter criteria. A downstream
foot drain was placed below the inclined filter and the
downstream shell, protected by a non-woven geotextile. Leaks
ranging from 1 up to 16 m
3
/h appeared in the downstream slope.
4.1
Simulation of closure operations
A mechanical model for all the operations involved during
closure was entrusted to the main author. A finite element
model was set up to reproduce all the steps that are being taken
during closure:
1. Finding the initial safety factor.
2. Upstream water drawdown produced by pumping the
contaminated reservoir water.
3. Upstream filling with coarse waste material.
4. Long term stability. Calculation of tailings settlements.
5. Seismic calculation, including consideration for tailings
liquefaction.
6. If necessary, finding the new safety factors with the
reinforcement from step 3.
Plaxis 2D-9.02 program has been used and the calculations
have been carried out with 15-node elements. A Mohr-Coulomb
materials model has been used; this is a model of perfect, non-
associated plasticity
Table 3 shows the calculation parameters.
4.2
Tailings
Figure 4 shows the tailings thickness inside the reservoir and
the thickness of Las Viñas material that will be placed above.
The hatched area is the area that should be treated with band-
shaped drains. Band-shaped drains should be always placed
when the tailings thickness is ≥15 m.
Table 3. Calculation parameters
Soil
type
USCS
c'
kPa
Φ’
γ
kN/m
3
k
m/s
E
MPa
Core
SC
18
30º 19.8
10
-8
50
Filter
SP-SM 1
35º 20
10
-5
50
Quarry run
GC
6
33º 20.2
6.5*10
-5
30
Rockfill
15
31º 21.9
9.5*10
-7
60
Selected rockfill
1
35º 20
5.1*10
-3
60
Weathered rock
50
20º 20.5
1.4*10
-6
300
Rock
250 20º 21.4
1.3*10
-6
10
4
Soft tailings
ML
1
29º 13.2
5.1*10
-9
0.52
Medium tailings ML
1
32º 19.7
5.1*10
-9
1.0
Las Viñas
Material
1
30º 20
1.2*10
-4
10
Figure 4. Tailings thickness inside the reservoir and the thickness of Las
Viñas material that will be placed above.
Table 4 shows the maxima settlements in tailings obtained
using several hypotheses.
Table 4. Maxima settlements in tailings.
Remainder
settlement
after construction
(m)
Test
Tailings
thickness
(m)
Fill
thickness
(m)
Maximum
settlement
(m)
No
drains
Drains
25
5.5
3.3
2.5
0.42
Oedometer
20
7
3.4
2.4
0.19
25
5.5
2.5
1.9
0.32
Piezocones
Soft tailings
20
7
2.6
2.6
0.15
25
5.5
1.3
1.0
0.16
Piezocones
Medium
tailings
20
7
1.3
0.9
0.07
4.3
Dam calculations
According to the inventory of tailings dams and ponds in
extractive industry in Spain (ITC 2000) it is clear that
Almagrera dam is class 1 (height greater than 15 m) but only
category C (moderate damage only incidentally affecting lives).
So, the first row of the safety factors in Table 2 must be
accomplished.
Compacted rockfill reinforcement was projected to fulfil
with the safety factors specified by the Spanish Regulations
(Figure 5).
Figure 5. Reinforcement needed to fulfil the safety factors of Table 2.
